AEGLE
A state-of-the-art cargo plane.
Our cargo plane Aegle is a light, fast and reliable electric plane. Aegle stands out for its impressive engineering and design. One notable feature is its 3D-printed construction, which offers unparalleled customization and modularity. The use of additive manufacturing has enabled our engineering team to push the boundaries of what is achievable in drone technology. The modular design of Aegle is another highlight, allowing for easy component replacements and upgrades. Modularity ensures adaptability to a wide range of mission requirements, making Aegle a versatile and practical choice.
At Aero Team Eindhoven we are trying to push the boundaries of aviation by creating our In-Air Battery-Swap System. We believe our solution will push for the adoption of electric-powered aviation, as the limitation of distance will be eliminated. Aegle was a very big step toward our goal as it opened our path toward creating the innovative parts of our design, our Battery-Swap Mechanism and our Drone-to-Drone docking system.
OUR CHALLENGE:
HISTORY:

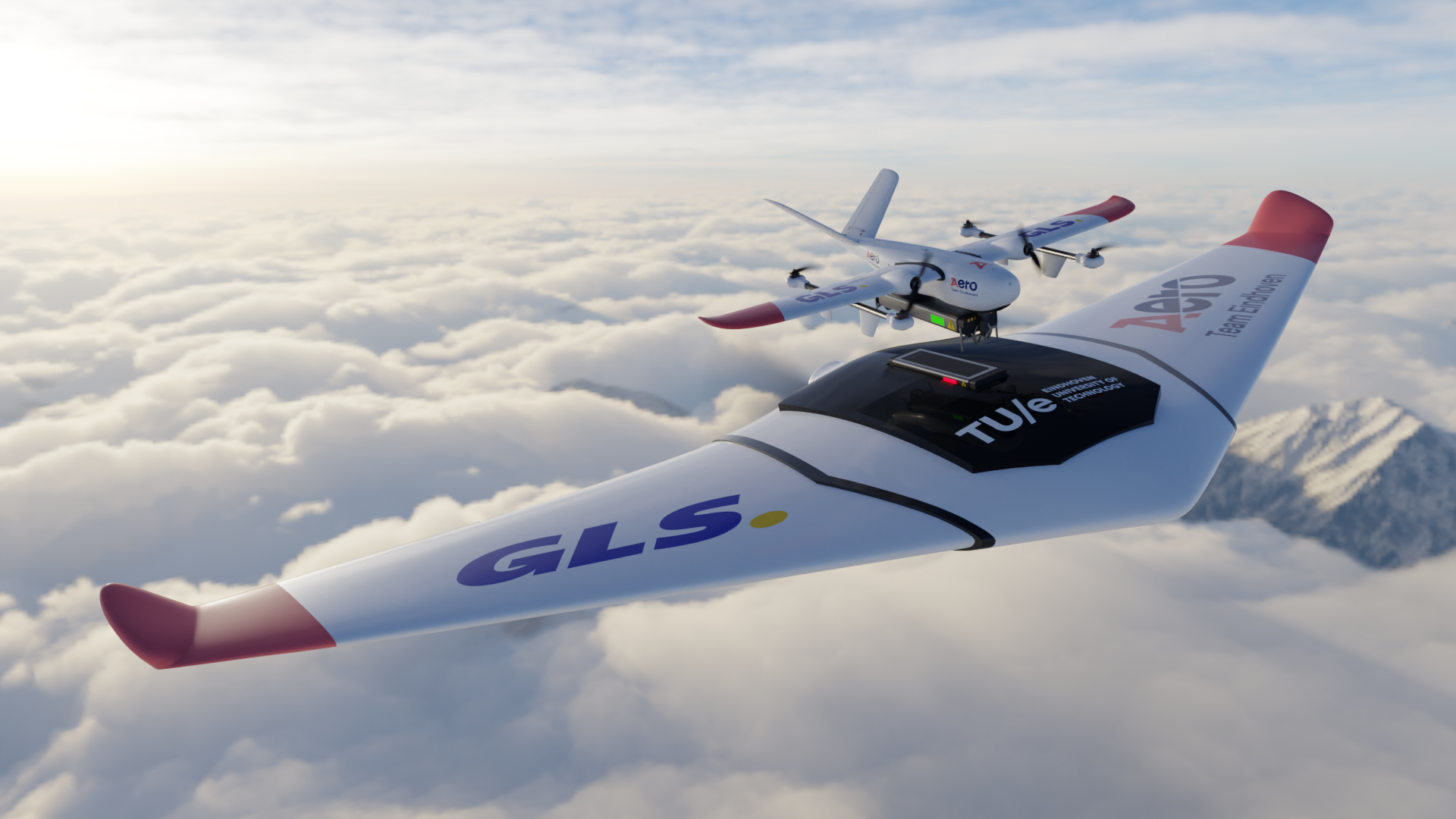

Our first concept for Aegle was the one pictured on the right. The renders were made mainly for first conceptualizations, as they assisted us in visualizing the high level concept of our design. However, we quickly moved on from this design as it is very complex to make it aerodynamically viable and decided to settle with a more standard plane design as can be seen below.
Q1 2021 - Q2 2021

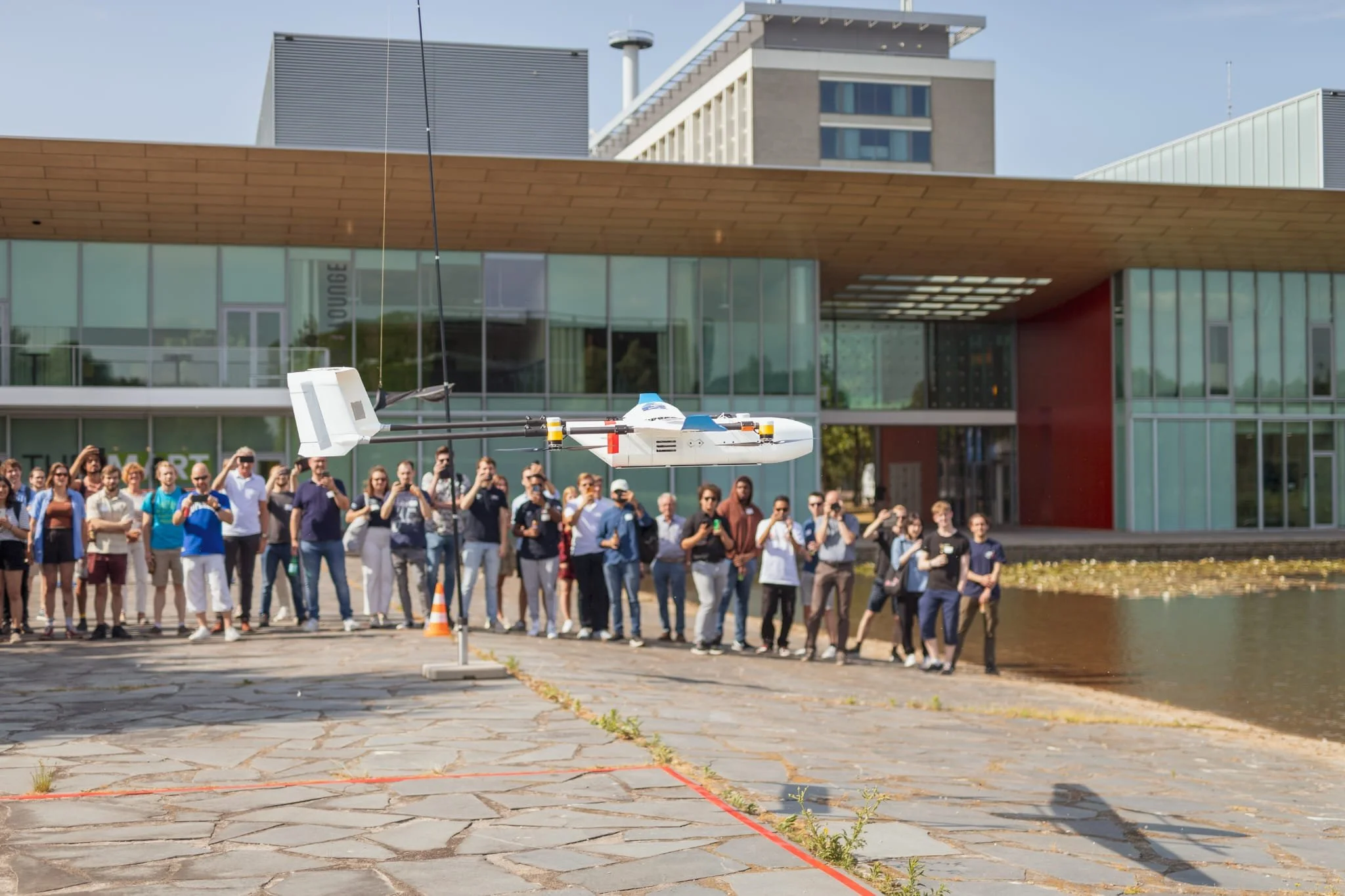

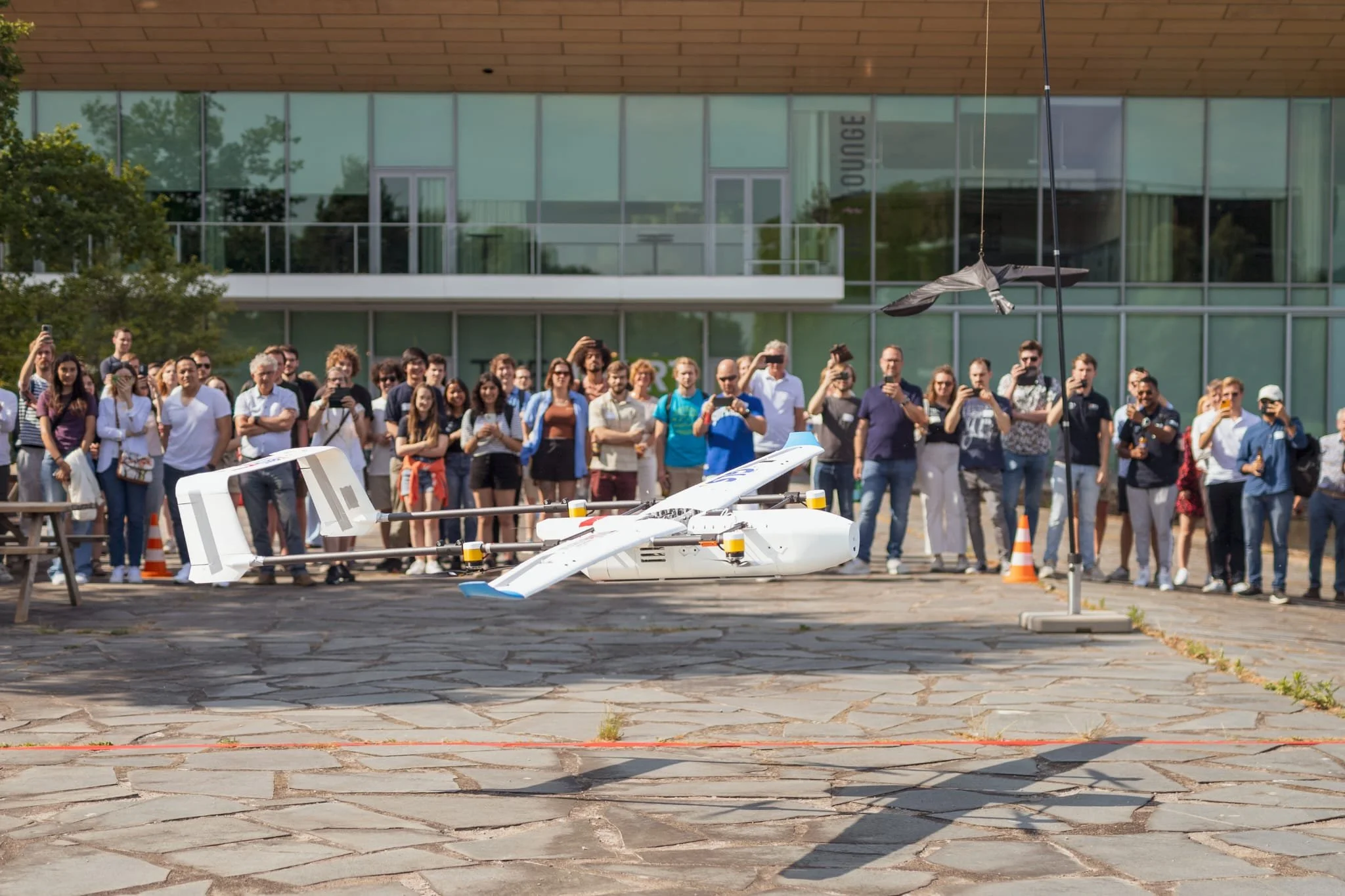

Our second concept is pictured on the left. It was the first concept we decided to manufacture. We were very satisfied with its performance as it managed to fly on our end event!
Q3 2022 - Q4 2023
FINAL CONCEPT:
ELECTRONICS & MOTORS:

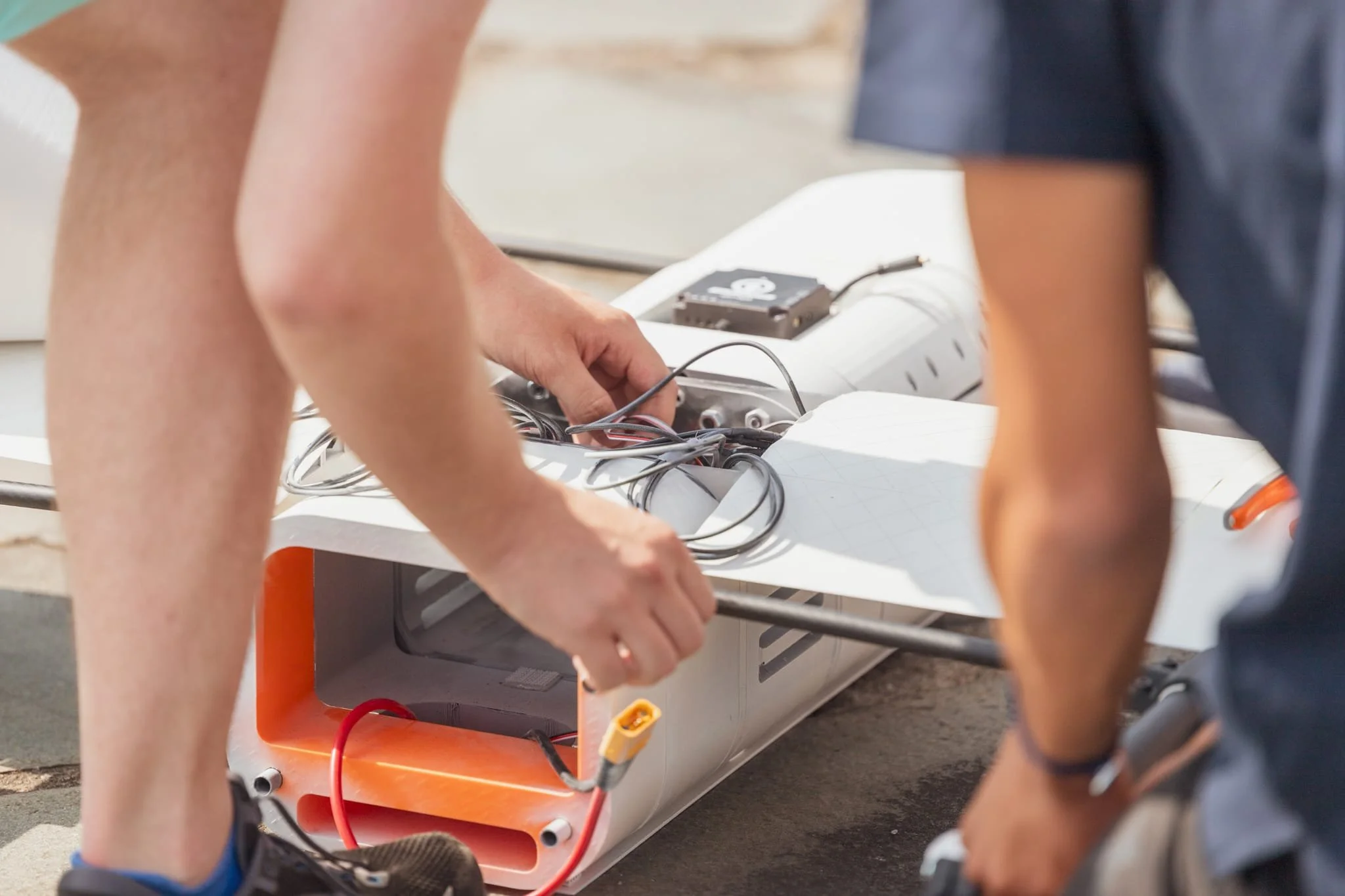

When it comes to flight capabilities, Aegle utilizes five motors in a quad-plane configuration, each capable of generating up to 8kg of thrust. This configuration enables stable quadcopter flight, providing reliability and control in various scenarios. Powering Aegle is a 10000mAh 12S (44.4V) battery pack, offering a hover flight time of 18 minutes or up to an hour of continuous forward flight. This battery capacity provides ample time for capturing aerial footage or completing missions without interruptions.
MANUFACTURING:
In terms of production efficiency, the entire assembly of Aegle can be 3D printed within a week. This rapid manufacturing process allows us to streamline production and manufacture drones in a timely manner. Aegle's design also prioritizes ease of repair, with a modular and rapidly repairable structure. This feature ensures that maintenance and repairs can be carried out quickly, minimizing downtime and maximizing operational efficiency. To ensure a robust and lightweight frame, the drone incorporates carbon fiber and acrylic supports. This combination of materials provides both strength and rigidity, while the flexible wings enhance maneuverability during flight. Aegle represents our commitment to pushing the boundaries of drone technology through innovation.
